Product Description

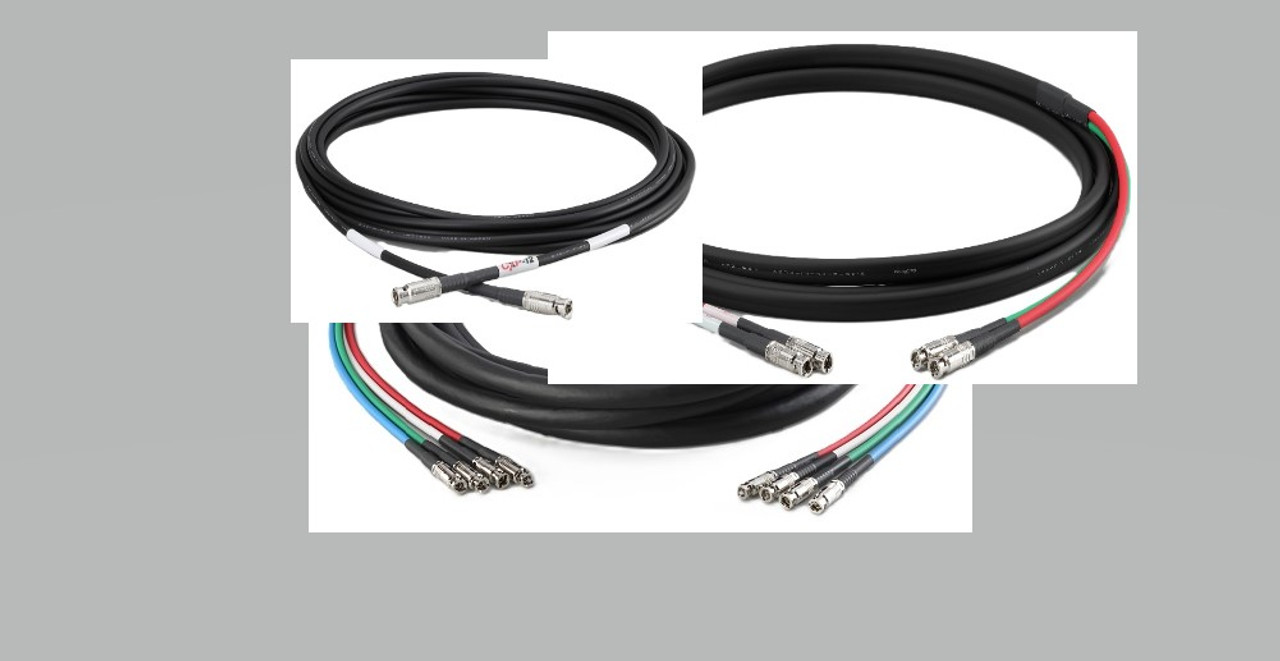

CoaXPress Cables - CXP-6 and CXP-12
| CoaXPress P/N Codes | ||
| Code | Description | |
| CXP Speed | 6 | CXP-6 (6.25 Gbps) |
| 12 | CXP-12 (12.5Gbps) | |
| Connector Side A | BH | Standard BNC |
| DH | DIN 1.0/2.3 | |
| HH | HD-BNC | |
| DHS | DIN 1.0/2.3 Threaded | |
| DL | DIN 1.0/2.3 Right Angle | |
| BL | Standard BNC Right Angle | |
| HL | HD-BNC Right Angle | |
| Connector Side B | BH | Standard BNC |
| DH | DIN 1.0/2.3 | |
| HH | HD-BNC | |
| DHS | DIN 1.0/2.3 Threaded | |
| DL | DIN 1.0/2.3 Right Angle | |
| BL | Standard BNC Right Angle | |
| HL | HD-BNC Right Angle | |
| Standard Lengths | 1M | 1-meter |
| 2M | 2-meters | |
| 3M | 3-meters | |
| 4M | 4-meters | |
| 5M | 5-meters | |
| Number of cores | S | Single Core |
| DF | Dual Core Cable - Flat | |
| QR | Quad Core Cable - Round | |
Our standard single cable is a 24C Hi-Flex cable with a 4mm diameter.
Example part number: CP12-HH-HL-5M-QR
CXP-12 H-Flex, HD-BNC to Right Angle HD-BNC, 5-meters, Black CoaXPress Quad Round Cable
For custom cable lengths, please contact us.
Blue Mango CXP-12 cables are JIIA certified.
