CoaXPress Cables

Coaxpress is an industry standard for industrial and machine vision cameras. It supports speeds of 6.25Gbps for CXP-6 and 12.5 Gbps for CXP-12. Multiple CXP lanes can be aggregated to achieve over 50Gps. The CoaXPress (CXP) technology supports image data, Power Over CoaXPress (PoCXP), and camera control over a single CXP cable. CXP has created opportunities for high resolution and faster frame rate cameras. For example 12 megapixels at 330 frames per second. Some applications for CXP cameras are flat panel inspection, document imaging, biotechnology, semiconductor inspection, virtual reality, sporting events (entertainment), and autonomous vehicles.

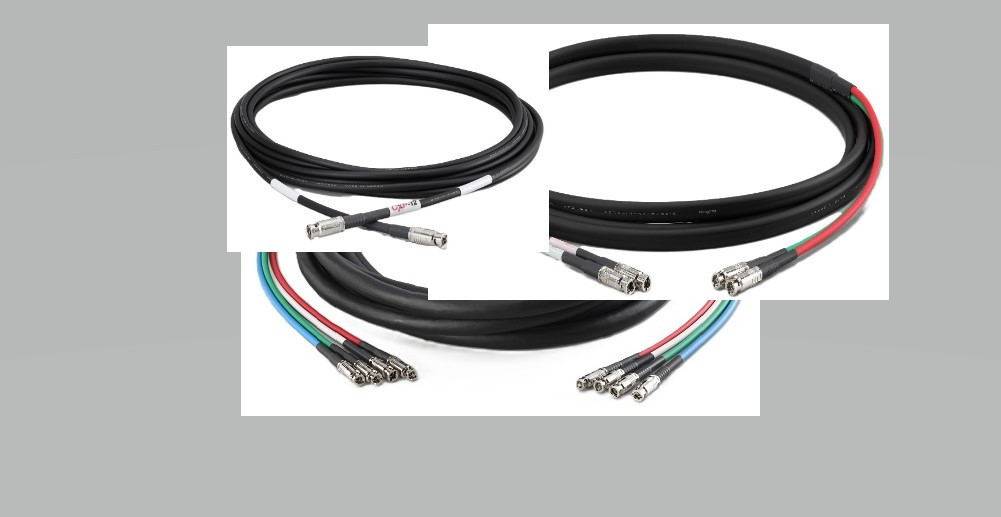

Our CoaXPress cables are available with various connectors: DIN 1.0/2.3 Push-Pull, DIN 1.0/2.3 Screw-Type, DIN 1.0/2.3 Right Angle, HD-BNC, HD-BNC Right Angle, BNC, and BNC Right Angle.

  • CoaXPress DIN Connector CXP-6 Cables CoaXPress BNC Connector CXP-6 Cables

    CoaXPress Cables

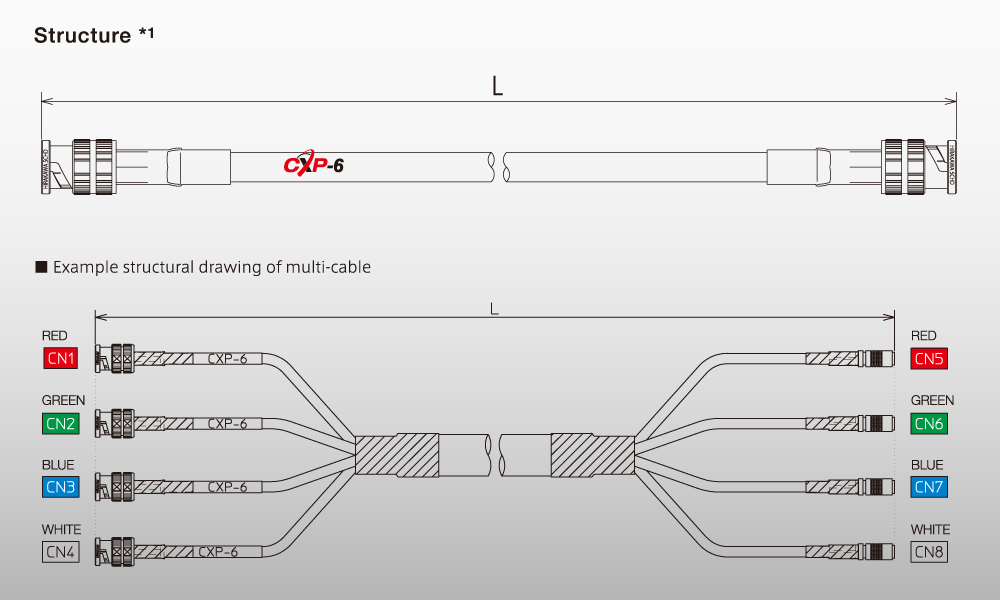

    CoaXPress Cables for Industrial Cameras Features: Hi-Flex PoCXP Supports up to CXP-6 Connector Types: DIN 1.0/2.3 Push-Pull (Straight and Right Angle) DIN 1.0/2.3 Screw Type (Straight and Right Angle) BNC (Straight and Right Angle HD-BNC (Straight...
