Product Description

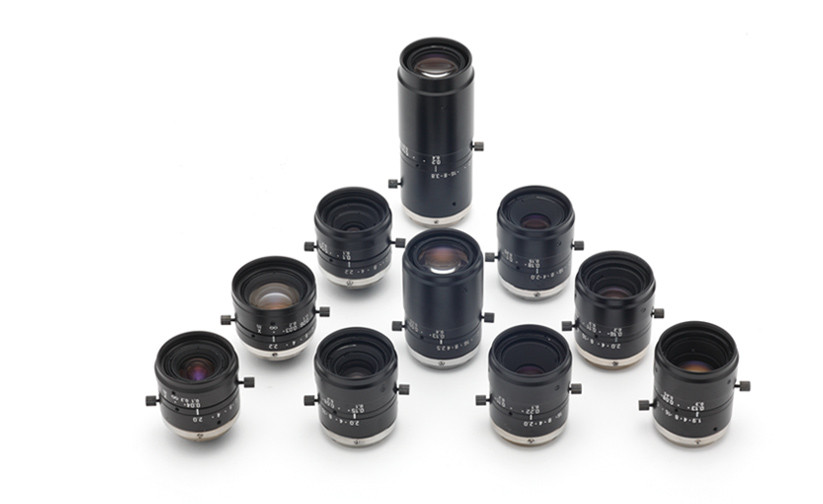

FV Series Lenses
Mega Pixel Low Distortion Fixed Focal Lens
- Design for machine vision application
- Compatible with 1/2" and 2/3" Image Sensors
- C-mount
- Excellent performance at short WD, <500mm
- Reduce color aberration, compared with Conventional Fixed Focal Lens
- TV distortion less than 0.1% (except for f4mm)
- Possible to use for macro imaging without extension ring
| Model | Focal length | ∞ F No. | Range of WD | TV distortion | Angle of view (H x V) | Filter pitch | Maximum Compatible Sensor |
|
|---|---|---|---|---|---|---|---|---|
| FV0420 | 4mm | 2.0 | 0.1m〜∞ | 0.91% | 75.14°x59.96° | M27 P=0.5 | 1/2” | |
| FV0622 | 6.5mm | 2.2 | 0.1m〜∞ | -0.01% | 52.35°×40.47° | M30.5 P=0.5 | 1/2” | |
| FV1022 | 10mm | 2.2 | 0.1m〜∞ | -0.08% | 34.61°×26.31° | M27 P=0.5 | 1/2” | |
| FV1520 | 15mm | 2.0 | 0.1m〜∞ | -0.09% | 31.79°×24.11° | M27 P=0.5 | 2/3” | |
| FV2020 | 20mm | 2.0 | 0.1m〜1m | -0.10% | 24.11°×18.2° | M27 P=0.5 | 2/3” | |
| FV2520 | 25mm | 2.0 | 0.15m〜1m | -0.01% | 19.58°×14.75° | M27 P=0.5 | 2/3” | |
| FV3020 | 30mm | 2.0 | 0.2m〜1m | -0.02% | 16.69°×12.55° | M27 P=0.5 | 2/3” | |
| FV3519 | 35mm | 1.9 | 0.3m〜1m | -0.03% | 14.32°×10.77° | M27 P=0.5 | 2/3” | |
| FV5025 | 50mm | 2.5 | 0.4m〜1m | 0.03% | 6.5°×4.9° | M27 P=0.5 | 2/3” | |
| FV7538 | 75mm | 3.8 | 0.4m〜1m | -0.01% | 6.81°×5.11° | M27 P=0.5 | 2/3” |
